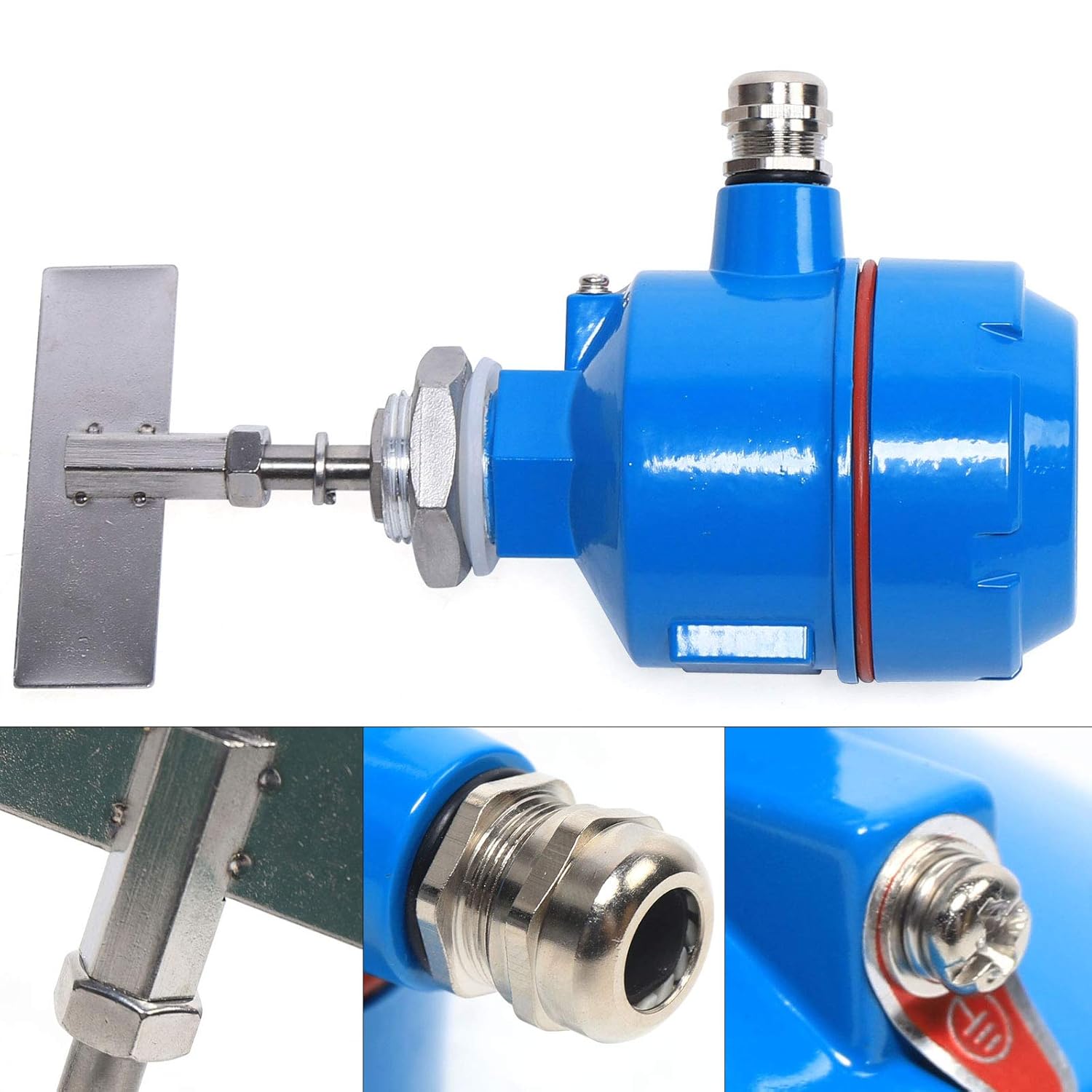

24V Material Level Switch, Aluminum Alloy Rotary Level Switch Thread Type Object Detector Sensor A Blade Temperature Resistance

A common level switch.Specification:Voltage: 24VPower: 4WBlade speed: 1r.p.mMeasuring torque: 1.0 NmWorking temperature: - 20 ~ 80 ℃Applicable specific gravity: 0.5g/cm³Features:1. Compact structure and compact shape2. Aluminum alloy shell, solid and reliable3. Stable performancePackage Included:1×SwitchNote:For horizontal installation, it is recommended to install the switch horizontally and downward at an angle of 15-20 ℃ to reduce the impact of materials.The wire inlet of the junction box must face down, and the fixing nut of the electric bolt must be locked.Confirm that the voltage used is correct during power transmission.The load of the controlled line must match with the switch contact plate#The bridge breaker or vibration motor should be avoided near the product installation,.The switch should not be installed close to the feed inlet to reduce blade damage and misoperation. If the switch must be installed near the feed inlet, a 2 "wide protective baffle should be installed 200 mm above the switch.Horizontal installation and vertical installation shall be selected according to different models.When the shaft length adjustable type switch is disassembled and installed on site, when the universal joint is connected with the transmission shaft, the locking nut must be coated with glue, and then locked with a wrench.The warning of "open the cover after cutting off the power supply" must be followed in the field installation.The maximum temperature of the tested medium shall not exceed the temperature indicated in the product label.Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.This product is only suitable for 24 volts DC and will not work at 24 volts AC.

• ✪【Features】Aluminum alloy shell, solid and reliable. Compact structure and compact shape. Stable performance
• ✪【Horizontal & Vertical Installation】Horizontal installation and vertical installation shall be selected according to different models. For horizontal installation, it is recommended to install the switch horizontally and downward at an angle of 15-20 ℃ to reduce the impact of materials
• ✪【Installation】The switch should not be installed close to the feed inlet to reduce blade damage and misoperation. If the switch must be installed near the feed inlet, a 2 "wide protective baffle should be installed 200 mm above the switch
• ✪【Note 1】When the shaft length adjustable type switch is disassembled and installed on site, when the universal joint is connected with the transmission shaft, the locking nut must be coated with glue, and then locked with a wrench. The wire inlet of the junction box must face down, and the fixing nut of the electric bolt must be locked
• ✪【Note 2】Confirm that the voltage used is correct during power transmission. The load of the controlled line must match with the switch contact plate. The bridge breaker or vibration motor should be avoided near the product installation. The warning of "open the cover after cutting off the power supply" must be followed in the field installation. The maximum temperature of the tested medium shall not exceed the temperature indicated in the product label
